Floor Cleaning Machine
Model:55B
Power:24V
Advantage:1. Key switch and red emergency brake button；
2.Convenient smart charge；
3.Intelligence operation panel；
4.Sewage overflow alarm device；
5.water-absorbing scraper；
6.aluminum casting process brush plate cover

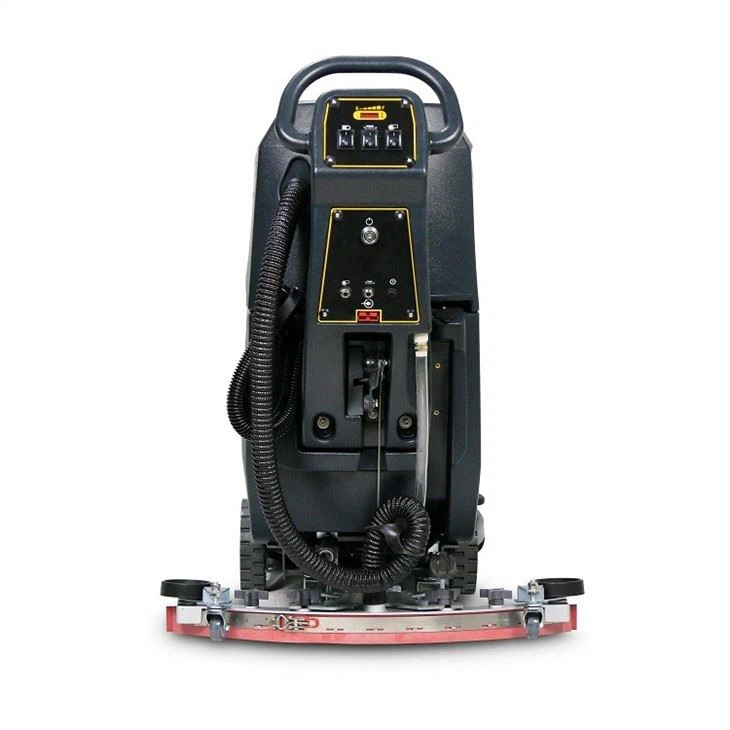

Floor Cleaning Machine
The 55A hand-push floor cleaning machine is extremely self-contained. It has two 120AH batteries installed. Working time might last up to 3-4 hours in a row. The floor cleaning machine is ensured by the energy-saving mode gadget, which will activate and optimize energy, water, and detergent use.
The machine is all formed by die-casting aluminum at one time, without sheet metal parts. The body is made of rotomolding, and after appropriate anti-corrosion treatment, the frame is completely protected.
Technical Parameters
Madel Name | 55A Automatic Floor cleaning machine |
Working Voltage | DC 24V |
Weight | 164 kgs |
Squeegee Lip Width | 800mm |
Brush Cleaning Width | 500mm |
Brush Rotation Speed | 160 rpm |
Pressure of Brusher | 30 kgs |
Brush Motor | 500W |
Suction Motor | 500W |
Solution Tank Capacity | 55L |
Recover Tank Capacity | 55L |
Battery | 12V-120AH*2 |
Cleaning Efficiency | 2000 sqm/h |
Battery and Charger | YES |
Product Details
Features and Advantages
1. Compact volume, flexible turning, and simple operation and maintenance
2. Manual operation is required for hand-push scrubbers.
3. Protect Brush disc and water-absorbing sticky tape with an intelligent water volume induction method.
4. The design is simple to maintain. Battery and water tank maintenance is straightforward, and brush disc and water-absorbing adhesive tape may be replaced without the need of a tool.
Customer Demo
Packing
Company Profile
XINGYI started as a project company in 1999, and became known in the industry as one of the top caliber in providing services and for manufacturing high quality floor grinder, industrial vacuum cleaner and floor polishing machines worldwide.
Our Professionals continuously create ergonomic machine designs, manufactures and sells products under High Tech Grinding brands.
Company Certificate
With the commitment to produce high quality standard equipment, XINGYI made its way to the market and has sold its products and services to more than 124 countries worldwide, won 200 design patents and 17 national patents.
FAQ
1. Operate the Machine
1. Turn the main power key to the position (I).
2. Pull down the lifting rod of the sewage collecting device to lower it to the ground.
3. Step on the brush head lifting pedal to lower the brush head to the ground.
4. Open the water control knob.
5.Press the brush motor switch, and then press the water suction motor switch.
6. Motor drive model: Adjust the speed control knob to your desired cleaning speed
Note: It is recommended to use a cleaning speed of 45-60 meters per minute.
2. During Operation
Warning: Fire or explosion hazard. Do not pick up flammable materials or active metals.
1. Each cleaning path overlaps 5 cm.
2. Keep the machine moving so as not to damage the ground.
3. If there are drag marks on the ground after absorbing water, wipe the rubber strip with a rag to remove garbage. Clean in advance to prevent drag marks.
4. Do not operate the machine on an inclined plane with a slope exceeding 5% (3).
For safety reasons: when using the machine, please move slowly on the slope or slippery ground.
5. If there is too much foam, pour the recommended defoamer solution into the sewage tank.
Note: Do not let foam enter the filter screen to avoid damaging the vacuum motor. Foam will make the filter switch fail.
6. Use double cleaning method to clean extremely dirty areas. First, lift the sewage collecting device for cleaning, and let the solution soak for 3-5 minutes. Then lower the sewage collecting device and clean it again.
7. Replace or rotate the cleaning pad as needed.
8. Observe the power consumption of battery power meter (refer to Battery Power Meter).
9. Check the remaining liquid volume through the clear water tank level gauge. The traditional land washing method uses about 10 liters every 10 minutes;
10. When the solution in the clear water tank is used up, empty the sewage tank first and then re-inject the solution.
11. When the staff leaves the machine, please park the machine on the level ground and take out the key.
12. After cleaning, carry out daily maintenance procedures (refer to "Machine Maintenance").

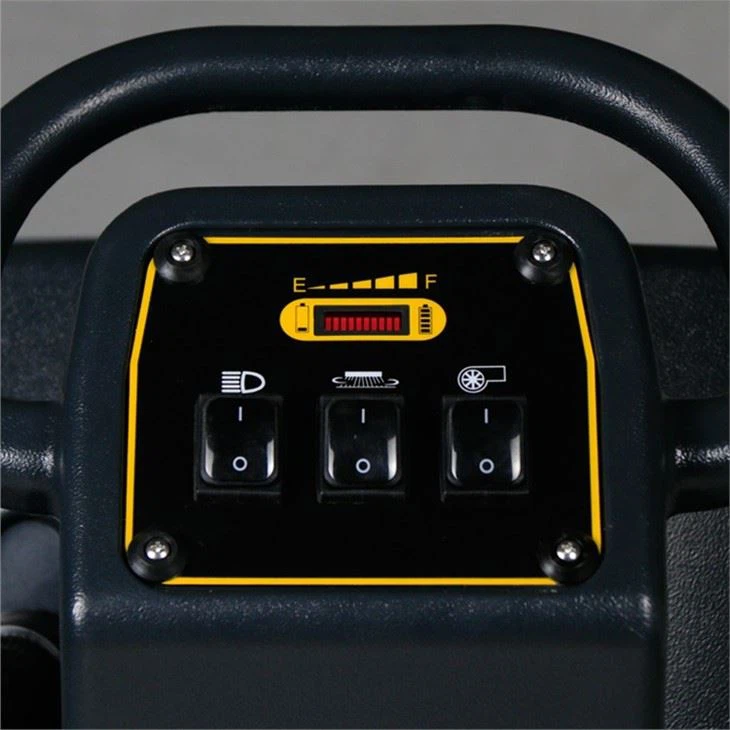

3. Battery Meter
The battery meter will display the battery charge. When the battery is fully charged, all indicator lights are on. With the change of power consumption, the indicator lights will turn off from right to left.
Note:
To prolong the battery life, Please be sure to charge the battery after the power of the machine is less than 10%.
