850mm Concrete Floor Grinding Machine Diamond Grinder
Model：850LE
Power：15KW
Advantage：1.The inverter adopts the DELTA/VEICHI brand;
The appearance is Chinese red design;
Possess the largest capacity PE red water tank;
Equipped with side adjustment lever.
850mm Concrete Floor Grinding Machine Diamond Grinder
Product Introduction

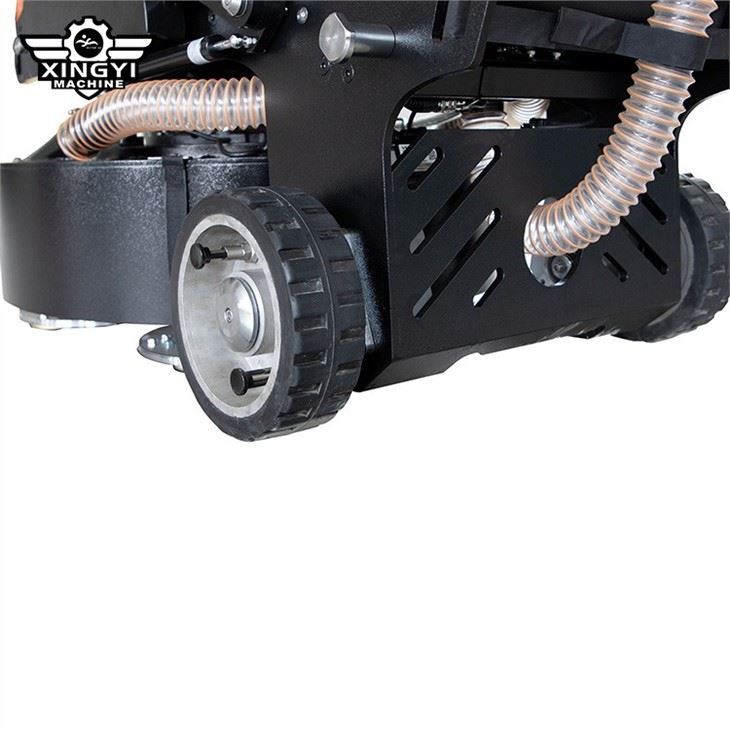

850LE is a new type remote control planetary disc floor grinder produced by Xingyi Company. The equipped remote control has a 4.3-inch high-definition screen, which can visually display various status and fault information of the machine. This propelled planetary concrete floor grinder comes with additional weight iron, three-stage aggravation, and the molding can be adjusted according to the ground conditions. The working width is 820mm. The forward/backward movement of the driven wheel can be controlled by the forward/backward switch, so that the user can get rid of manual pulling or pushing the machine forward/backward operation, which greatly saves manpower and is convenient for users to operate.
Technical Parameters
Model | 850LE Floor surface grinding polishing machine |
Voltage | 380-440V 3P/220-240V 3P |
Operating width | 820mm |
Grinding disc | 278mm*4 |
Rotating speed | 450-1950rpm |
Motor HP | 15KW/20HP |
Inverter HP | 15KW/20HP |
Weight | 600kg/1323lbs |
Water tank | 39L |
Packing size | 1580*970*1320mm |
Configuration | WEG motor + Veichi inverter |
Product Details
Features and Advantages
1. The inverter adopts the DELTA/VEICHI brand, which is stable and reliable;
2. The appearance is designed in Chinese red, which is more beautiful and atmospheric;
3. Have a PE red water tank with a maximum capacity of 39L;
4. Equipped with a lateral adjustment lever, the swing lever can be adjusted in multiple stages, and there are more choices；
5. WEG international brand motor, large starting torque;
6. With fault early warning and alarm function, the fault information is comprehensive and can be read in real-time;
7. Three-level aggravated iron, more detailed grinding;
Product Usage
Customer Demo
Our Services
Our Certificate
FAQ
1.A: Are you a trading company or a manufacturer?
B: We are a manufacturer. If you are interested in our products, we are happy to welcome you to visit our factory.
2.A: Can I customize the machine?
B: Yes, we can provide OEM and ODM services. You can tell me any detailed requirements at any time.
3.A: How long is your warranty period?
B: 1 year.
4.A: Why do you need a concrete floor grinder?
B: Speaking of all-in-one construction tools, a concrete floor grinder is a must. Whether the work involves polishing uneven concrete slabs, leveling joints, removing stubborn tiles, vinyl glue, paint, or giving concrete surfaces a smooth appearance or even cleaning industrial pollutants, these powerful machines do not require chemical etching and can Quickly complete the work of large and small concrete surface treatment. Most grinders are used to process wet and dry surfaces. Successful grinding requires proper cleaning and treatment of concrete dust or mud generated during the process.
