Classic Round Grinding Machine 550-3D
Advantage:
1. Use internationally renowned brand WEG motor, S1 working system, large starting torque, one year warranty
2. Equipped with Delta frequency converter, wide voltage input, maximum starting torque surplus reaches 20%, vector torque control
3. Integrated aluminum alloy gear box, imported CNC machine tool processing, processing accuracy of 0.5um, good heat dissipation and corrosion resistance
Classic round grinding machine 550-3D
The 550-3D with a circular planetary counter-rotating grinding disc is Xingyi's best-selling concrete grinder . It has stable performance and high grinding efficiency. It is one of the ideal ground preparation equipment. The ground grinder has a working width of 550mm, three multi-functional planetary grinding discs, a speed of 350-1460rpm and the world-renowned WEG motor of 5.5 HP, which lays a solid foundation for ground grinding work and is suitable for large and medium-sized construction sites and commercial use. , It can be used for various operations such as de-glueing, surface repairing, and rough machining. In addition, the 550-3D floor grinding machine also has high-precision manufacturing technology with CNC machining technology to ensure the dustproof and waterproof functions of the gearbox.
Technical parameter
|
Model Name |
550-3D |
|
Working Width |
550mm |
|
Voltage |
380-440V three phase |
|
Motor HP |
WEG motor 4KW |
|
AC Motor driver |
Delta inverter 5.5KW |
|
Rotating Speed |
350-1460rpm |
|
Grinding disc |
230mm*3 (3heads) |
|
Water tank |
20L |
|
Packing size |
104*64*120cm |
|
Weight |
165kg |

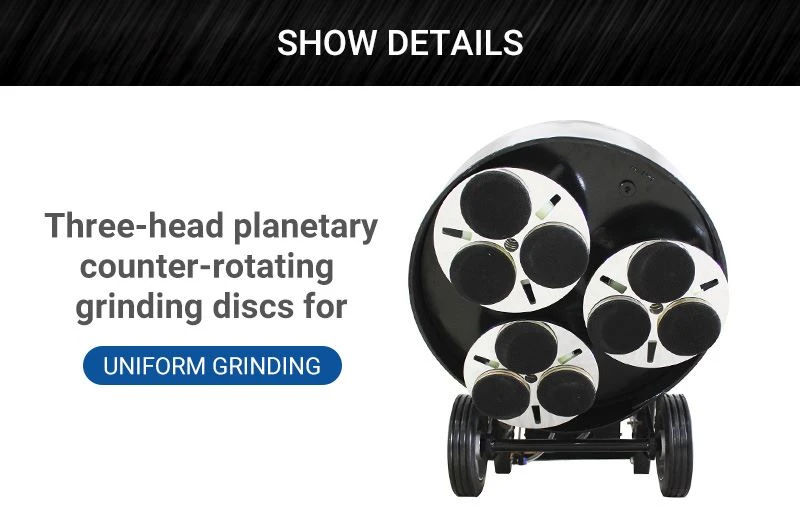

☛3-head planetary rotating grinding disc
☛Integrated control panel for easy operation
☛50mm suction port for vacuum cleaner
☛Exquisite baking varnish craft
☛CE Standard aviation plug
☛Logical water way system for wet grinding
☛Rubber wheel with superior aluminium alloy hub
☛The exterior screws are made of 304 stainless steel with long service life
☛The planetary gear transmission system with uniform grinding effect
☛Convenient waterway switch position with convenient operation
Customer application
Show results
FAQ
Q1:
How do you grind a flat concrete floor?
A1:
Move the wheel/disc over the surface of the concrete quickly and smoothly. Make multiple passes over a high spot to grind it down. Do not simply hold the grinder in one spot, as this will grind channels into the concrete based upon the edge of your disc or wheel.
Q2:
Can you grind down cement?
A2:
Yes, all concrete can be polished. Any pre-existing concrete can be ground down and smoothed with the right devices and skills. But, the ease and difficulty of the concrete grinding can vary depending on how old the slab is. In general, older concrete is much easier to grind.
