Dust Free Concrete Floor Preparation Grinder
Model：750-3D
Power：11KW
Advantage：1. Folding handle, integrated central control panel design, convenient operation;
2. Damping pad to protect the grinding head from damage;
3. The wire support rod can be raised or lowered arbitrarily;
4. Standard aviation plugs, copper core cables are better than national standards;
5. The grinding disc is equipped with a dust cover to collect dust, which is beneficial to human health.
Dust Free Concrete Floor Preparation Grinder
The 750-3D floor preparation grinding machine is digital grinding so that quality and efficiency are no longer restricted by others! Regardless of gender, women with a small body can easily control it. The 750-3D power grinding machine does not need multiple people to assist when changing abrasives. One person can easily complete the entire construction process. This planetary ground concrete grinder greatly improves work efficiency and reduces the possibility of accidents when replacing the grinding pad of a heavy-duty grinder. Xingyi is a professional manufacturer of floor machinery. Its products look fine and comfortable to use. The appearance and quality are synchronized online. There are many models to meet various needs. Welcome everyone to come to understand and cooperate.
Technical parameters
Model | 750-3D |
Operating width | 750mm |
Grinding disc | 256mm*3 (3heads) |
Rotating speed | 450-1950rpm |
Motor HP | 11KW/15HP |
Inverter HP | 15KW/20HP |
Amperage | 24.09A/41.55A |
Voltage | 380-440V three-phase/220-240V three-phase |
Weight | 340kg |
Product Features
1. Folding handle, integrated central control panel design, convenient operation;
2. Damping pad to protect the grinding head from damage;
3. The wire support rod can be raised or lowered arbitrarily;
4. Standard aviation plugs, copper core cables are better than national standards;
5. The grinding disc is equipped with a dust cover to collect dust, which is beneficial to human health.
Product detail

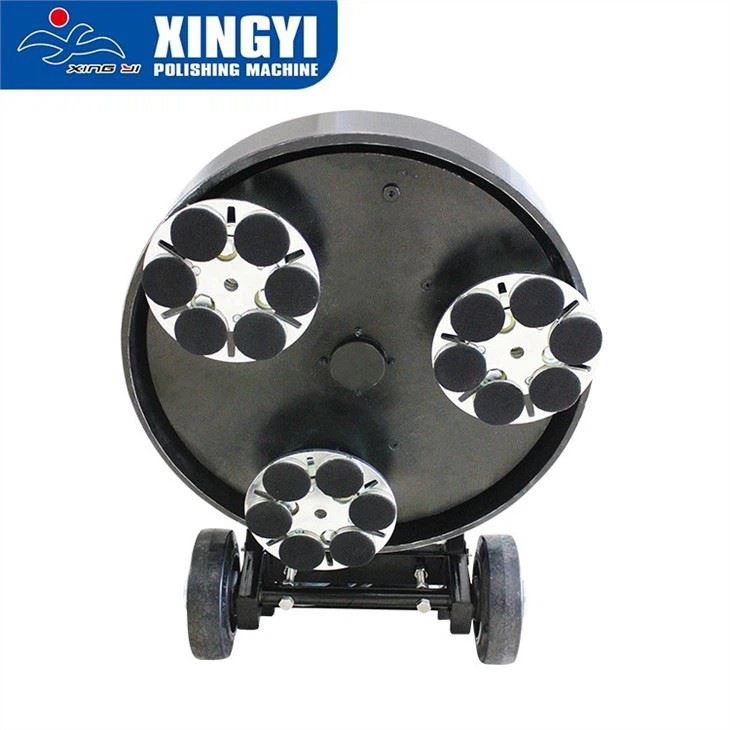

750-3D750-3D is a three-head planetary grinder. The planetary gearbox of the three-head planetary grinder has three power output shafts, and each shaft has a grinding disc so that the planetary gearbox and the grinding disc installed on it can rotate like a "satellite". When they are used for surface treatment, both the grinding disc and the planetary gearbox rotate in different directions. The grinding width of the floor grinder of the three-head planet is usually in the range of about 550mm to 1000mm.
Our Advantage
1. Quality: machine failure rate is low, long service life, quality, trustworthy!
2. Operation: female operation can be realized, efficiency is improved, and labor is saved.
3. Strength: worry-free after-sales service, excellent quality.
4. Service: timely logistics delivery, timely delivery, so that you have no worries about the future.
Client feedback
Packaging & Delivery
Our Company
Fujian Xingyi Machinery Co., Ltd. is located in Jinjiang, the capital of Chinese brands. It is a large-scale group company engaged in the research and development, production, and sales of floor grinding machinery. The company was founded in 1999 by entrepreneur Mr. Ye Genyi and won the "National High-tech Enterprise" "Fujian Science and Technology Enterprise", "China Green Building National Brand" and other honorary titles; owns three domestic leading technologies, three domestic advanced technologies, six invention patents, and more than 100 utility model patents; after more than ten years of research and development Innovative, has successfully developed a new generation of intelligent floor grinders with mature driving and remote control technology. Among them, the product types of Haotek-driven floor grinders are becoming more and more abundant, and the HTG777-4A has developed to the sixth generation; and passed ISO9001 quality management system certification, CE certification; products are exported to 113 countries and regions, with after-sales maintenance centers covering most regions! Xingyi seizes the historical opportunities brought about by the development of China's machinery industry, adheres to customer-centricity, takes quality and efficiency as its mission, and continues to innovate based on customer needs, winning the respect and trust of customers at home and abroad.
FAQ
1.Q: How long is the delivery time of your machine?
Answer: Under normal circumstances, the delivery time of our machine is about 7-15 days, and the customized machine will be delivered as negotiated with the customer.
2.Question: The machine can be customized according to our needs, for example, can we put our logo on it?
Answer: Of course, our machine can be customized according to your needs, and your logo can also be affixed.
3. Q: As the transportation cycle is long, how to ensure that the machine will not be broken?
A: Our goods are packaged strictly, and we cooperate with many logistics express companies on the market, and we can choose the appropriate logistics delivery according to the actual situation.
Contact us
Email: service04@polishingmachine.cc
Whatsapp: 008615880886819
Hot Tags: dust free concrete floor preparation grinder, China, manufacturer, supplier, factory
