Floor Surface Grinding Polishing Machine
Model：850LE
Power：15KW

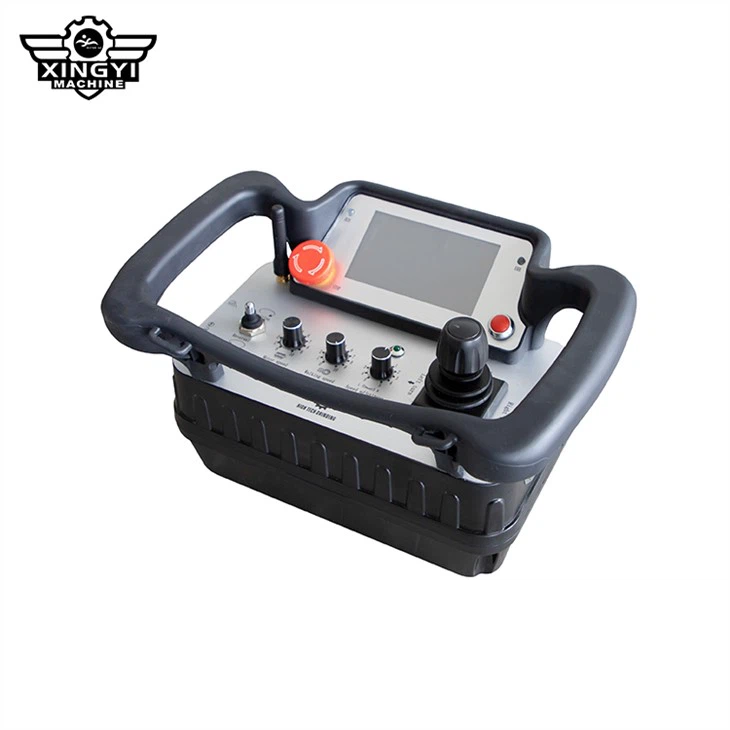

Advantage：1. Intelligent remote control: millisecond response of the new generation feedback system, intuitive grinding data running status and fault information;
2. Infinite turning radius: turning is more flexible and easier to correct;
3. Full servo system walking: higher accuracy and better operation performance;
4. Wide range of operations: The dual-clutch drive system is stronger and more suitable for potholes.
Floor Surface Grinding Polishing Machine

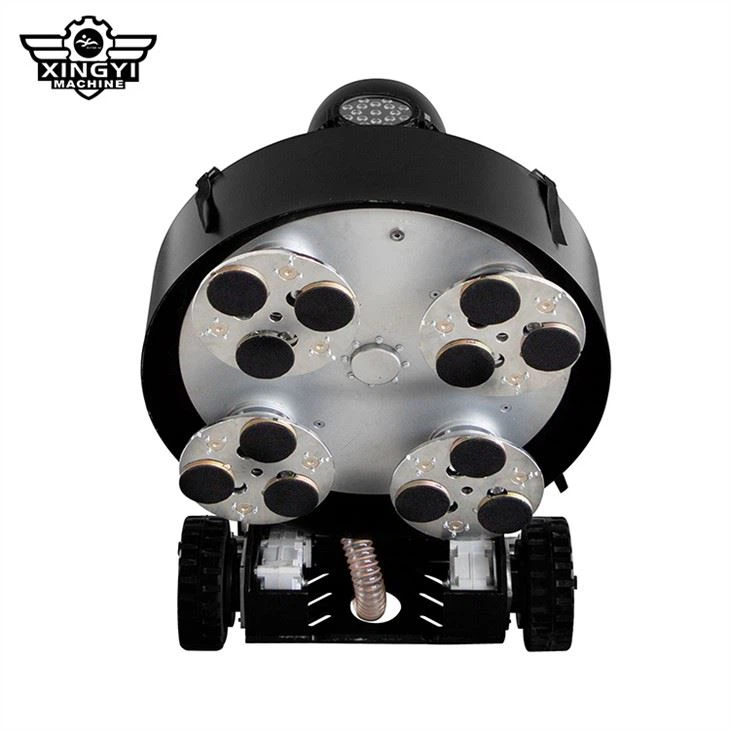

850LE is a remote-controlled planetary floor grinder, with full gear transmission, four-disc counter-rotating grinding, excellent mechanical balance; automatic balancing device, stable operation, suitable for different floor grinding; all aluminum alloy reducer, long time Work to extend the service life of the reducer; the grinding speed can be intelligently adjusted, and the mechanical grinding speed can be adjusted according to different grounds; it can be equipped with dust collection equipment to achieve two working modes of dry and wet.
Technical Parameters
|
Model |
850LE |
|
Voltage |
380-440V 3P/220-240V 3P |
|
Operating width |
830mm |
|
Grinding disc |
278mm*4 |
|
Rotating speed |
450-1950rpm |
|
Motor HP |
15KW/20HP |
|
Inverter HP |
15KW/20HP |
|
Weight |
600kg/1323lbs |
|
Water tank |
39L |
|
Packing size |
1580*970*1320mm |
|
Configuration |
WEG motor + Veichi inverter |
Product Details
Features and Advantages
1. Intelligent remote control: millisecond response of the new generation feedback system, intuitive grinding data running status and fault information;
2. Infinite turning radius: turning is more flexible and easier to correct;
3. Full servo system walking: higher accuracy and better operation performance;
4. Wide range of operations: The dual-clutch drive system is stronger and more suitable for potholes.
Product Usage
Customer Demo
Our Services
Our Certificate
Packaging & Delivery
