Concrete Floor Grinder Polisher
Model：680-4E
Power：11KW
Advantage：1. Equipped with damping pads to make the operation more stable, protect the grinding disc from damage, and improve construction efficiency.
2. Concealed water inlet, more beautiful and generous, saving space and more convenient construction.
3. Can be connected to industrial vacuum cleaners to achieve dust-free grinding and improve construction efficiency.

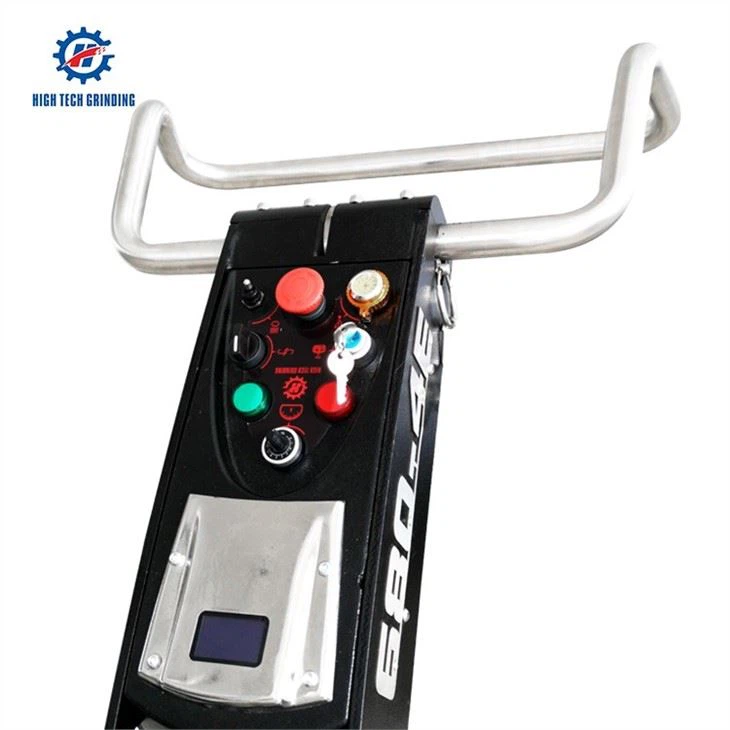

4. The operation is simple, the handle can be adjusted, the operation is more convenient, and the grinding is more convenient.
Concrete floor grinder polisher
The 680-4E concrete floor grinder polisher is a versatile industrial grinder with a low cost of ownership.
The 680-4E concrete floor grinder polisher' working area of the grinding disc is wide, and the grinding efficiency is high: the working area of the four grinding discs has a width of 680mm*680mm. Four grinding discs (12 grinding heads in total) design, equipped with high-power motors, strong horsepower: the front and rear grinding discs can rotate towards or opposite to each other. The one-way torque when the grinding disc rotates can be offset each other, which makes it particularly easy to operate the machine.
Technical parameter
Model Name | 680-4E |
Voltage | 380V-440V 3 phase |
Ampere | 22.9A |
Working width | 680mm |
Grinding disc | 230mm*4 |
Motor Rotating speed | 450-1950rpm |
Motor HP | 11KW/15HP |
Inverter | 15KW/20HP |
Configuration | WEG motor + Delta inverter |
Weight | 500kg |
Extra weight | 20kg x 2 |
Water tank | 15L |
Product Details
Advantages
1. Gear drive, reduce machine failure rate and prolong service life.
2. The four-head planets counter-rotate, the grinding surface is more balanced, and the grinding efficiency is improved.
3. Equipped with shock-absorbing pads to make the operation more stable, protect the grinding disc from damage, and improve construction efficiency.
4. The hidden water inlet is more beautiful and generous, saves space, and is more convenient for construction.
5. Vacuum cleaner interface, which can be connected to industrial vacuum cleaners to realize dust-free grinding and improve construction efficiency
6. The dust cover reduces the generation of dust, and it is more convenient to replace the grinding disc.
Customer Praise
Customer Demo
Related Products
Our Company
Grinding machines are sold to countries and regions
FAQ
Q1: Are you a wholesaler or a manufacturer?
A1: We are a producer. We've had a lot of visitors, so thank you!
Q2: Do you make accessories as well?
A2: Yes, we manufacture a wide range of accessories.
Q3: Are there any accessories included with the machines?
A3: All of the machines will come with all of the essential accessories.
Q4: How long is the machine's warranty?
1 year warranty on A4 paper.
Q5: How long does it take for you to deliver?
A5: Usually 3-20 days (depending on total quantity), plus we have a warehouse in the United States for quick delivery.
Q6: Do you offer custom-made machines?
A6: Yes, we offer OEM and ODM services.
