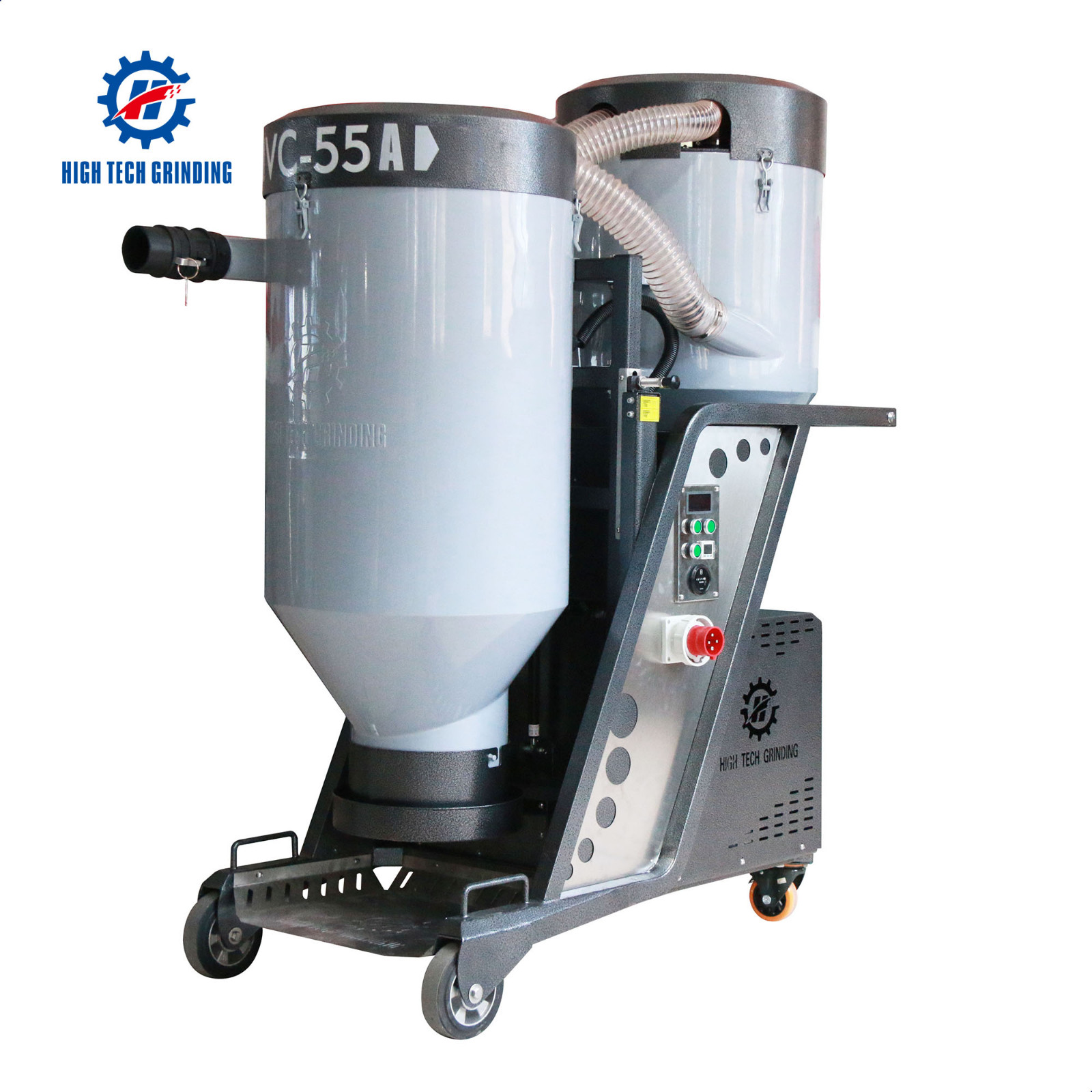

Automatic Industrial Cyclone Dust Extractor Machine Dust Seperator Collector
Model:IVC-55A
HP:7.5HP
Voltage:220-240V/380V-440V
Advantages:IVC-55A is a dust extractor tailor-made for floor grinding.The connector and the emergency switch,it will be more safer.
Manufacturig Center
1. General Introduction
IVC-55A is a dust extractor tailor-made for floor grinding. It’s constructed with cyclone separator. The cyclone separator filters most of the dirt and debris and let the fine dust go through HEPA 13 Filter. With this design, it has great filtration performance and a durable life.
2. Technical Data
Model | IVC55A |
Power (KW) | 5.5 |
Rated Voltage（V） | 380/220 (3P) |
Rated Current（A） | 13.3/25 |
Max.Suction（Kpa） | 30 |
Max. Airflow（ | 600 |
Recommended mininum cable size（ | 5 |
Overall Filter Area（ | 4.3776 |
Filter Degree | HEPA 13 |
Weight（kg） | 270 |
Size，（L x W x H）（mm） | 1514*692*1692 |
Lifting Size (mm) | 1514*692*1970 |
）
）
）
3.Machine Advantage
 | 1. The connector and the emergency switch,it will be more safer. 2.Material of the filter is imported from Japan. Hepa filter can collect 20-30% dust which left by first cyclone design tank. |
| 2.Patented filter design that won’t trap the dirt on the filter and allow the air passing through to release the clean air. |  |
 | 3. Patented turbe cyclone design to increase the air pressure,also can make sure filter 80-90% dust . 1) Cyclone turbe sheel structure decrease the air pressure and drops the dust inertial . 2)Inner surface of the tank is round and smooth, providing a unobstructed road for the dust. 3)The dust dropping tank is arc-shaped and provides a wider road for the dust so that more dust will drop to the the first filtration bags. 4)Without angles obstruction in a smooth arc-shaped tank, the vacuum can save 60% of the energy and increase 50% of the working efficiency, 30% of the dust clearing efficiency, and reduce 30% of the noise. |
4. Low noise dba design. Patented noise reducing design to keep the noise between 60-70dba. |
|
5. With lifting function is more easy for machine transportation
6. Longopac dust collecting system allows fast disposal of dust and get a dust-free environment.
7.Consistent high air flow
8. Less dust left on the floor, contributing to time savings and a healthier working environment
9.High Productivity
10. Low maintenance cost
4. Our service
1.Low MOQ:It can meet your promotional business very well.
2.OEM Accepted:We have our own factory and w
we can match any your samples.Welcome to visit our factory.
3.Good Service:We treat clients as friend and with best after-sales service.
4.Good Quality:We have strict quality control system.Our products have passed CE,SGS,TUV,ISO9001 certificate.Good reputation in the market.
5.Fast & Cheap Delivery:We have big discount from forwarder (Long Contract).
6.We have a big sales team with more than 20 peoples
