550-3D Professional Concrete Floor Grinder
Model:550-3D
Power:4KW
Advantage:1. Using the internationally renowned brand WEG motor, S1 working system, large starting torque, maintenance-free and long service life.
2. Equipped with Delta frequency converter, wide voltage input, maximum starting torque surplus up to 20%, with fault early warning alarm function.
3. Integrated aluminum alloy gear box, imported CNC machine tool processing, processing accuracy of 0.5um, good heat dissipation and corrosion resistance.
550-3D professional concrete floor grinder
550-3D is a concrete floor grinding and polishing integrated machine made by Xingyi Company. It is a grinding machine suitable for medium and large construction sites. The working width of 550 mm and its 5.5HP high-power motor are destined to this This type of grinder is extraordinary. The grinding efficiency, high performance and stability are its basic characteristics. In addition, the concrete grinder is equipped with planetary counter-rotating grinding discs to fundamentally solve the problem of uneven grinding of the machine. This is a major feature of the grinder. Breakthrough is a special breakthrough for all machines in our company. 550-3D is a series of grinding machines that you will regret if you don't buy it.
Specifications
Model Name | 550-3D |
Working Width | 550mm |
Voltage | 380-440V three phase |
Motor HP | WEG motor 4KW |
AC Motor driver | Delta inverter 5.5KW |
Rotating Speed | 350-1460rpm |
Grinding disc | 230mm*3 (3heads) |
Water tank | 380-440V three phase |
Packing size | 104*64*120cm |
Weight | 165kg |
☀Three-head planetary counter-rotating grinding disc
☀Thickened gearbox cover is impact resistant
☀WEG motor, global warranty
☀Equipped with water tank for wet and dry grinding
☀Led light design makes working at night more convenient
☀Adjustable handle for easy operation
☀Equipped with vacuum tube can be connected to vacuum cleaner
☀High cost performance, weight and working area are the best choices in small and medium-sized machines

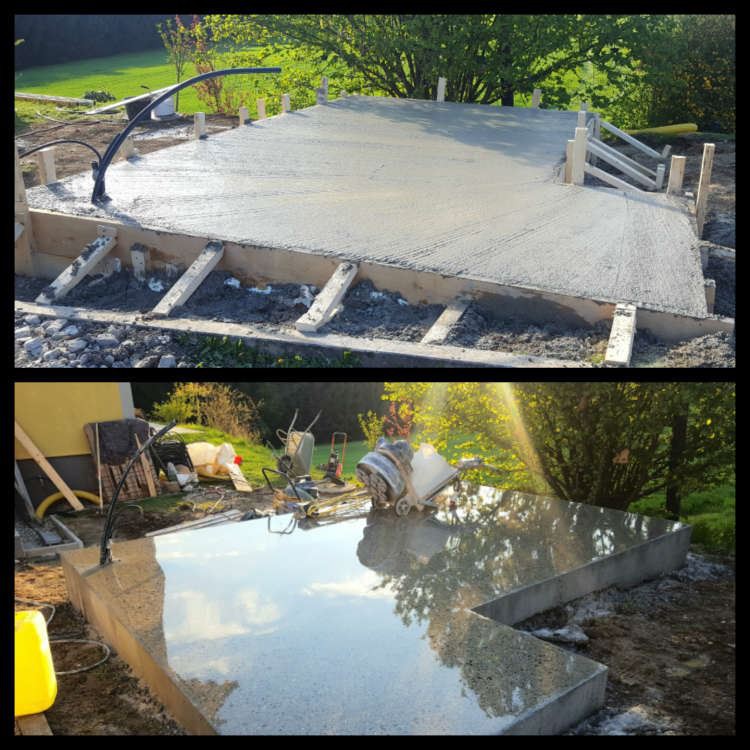

Customer demo
FAQ
Q1:
How to seal and solidify the terrazzo floor?
A1:
1. Base surface treatment: Proper treatment should be carried out according to the specific situation, such as removing curing agents, oil stains, dust, building scum, wall residues and removing loose materials left on the foundation surface.
2. Grind with a grinder with 50, 150 mesh, 300 mesh resin grinding discs (wet grinding with water). Grind 3-5 times according to the ground conditions
3. After the ground is dry (usually let the ground dry overnight), spray the concrete sealing curing agent lithium based on the ground and push it evenly with dust
4. After the ground is dry, moisten the ground with water and grind 300 meshes separately, use the concrete sealing curing agent lithium base to push evenly with dust
5. Use a high-speed polishing machine with 1# or 3# animal hair pad to polish the ground dry. (If you don't have a high-speed polishing machine, you can use a grinder with a dry polishing pad to polish).
Q2:
How to use 550-3D grinder to grind the ground？
A2:
