Remote Control Concrete Grinder
1.Remote control grinding machine is beneficial to save manpower and is convenient to use
2.Equipped with stainless steel water tank, strong and beautiful, small weight and long service life
3.The unique planetary counter-rotating system helps reduce the deflection force generated by the machine, so as to better control the machine

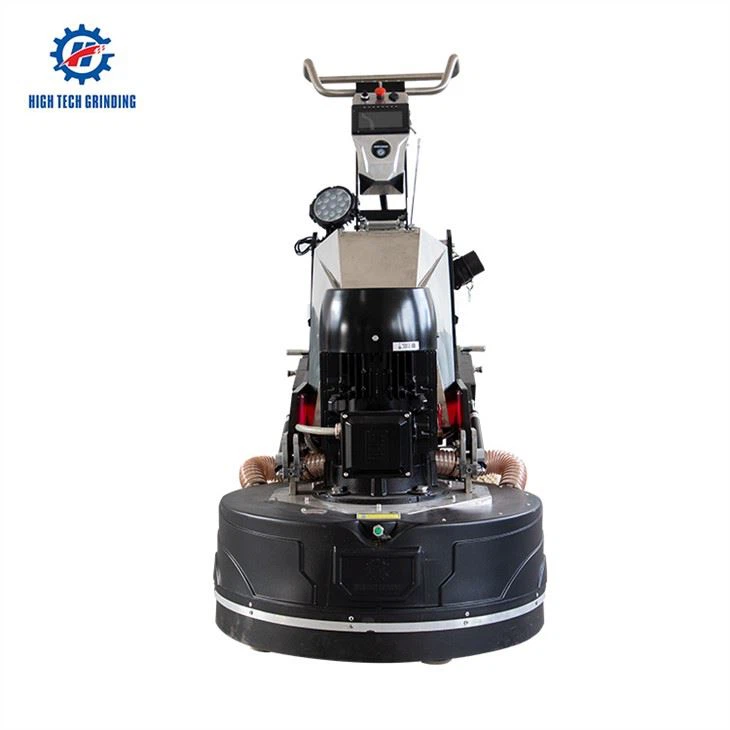

HTG 800-4E Remote Control Concrete Grinder
Product description
HTG 800-4E is a concrete grinder with remote control. It has a special patented floating dust cover, which is sturdy and durable. It is a breakthrough in the traditional abrasive dust cover. When changing abrasives, the dust cover will not fall off the machine, which solves the traditional grinding problem of reinstalling the dust cover and improves work efficiency. As a diamond tool or silicon carbide. The most commonly used diamond tool for grinding is the diamond grinding cup wheel, and the diamond polishing pad is usually used for polishing.
Diamond floor grinder 800-4E is an 800mm remote control floor grinder. The patented four-head planetary technology combines the performance of a three-head planetary system with the easy control of a square-head four-head grinder. Compared with the three-head planetary system, it can exert more power on the grinding head, which is more stable than the three-head, so that the machine can grind more uniformly and achieve the effect of leveling the ground, and it can produce greater power and Work on working width.
Product parameters
Model Name | 800-4E |
Working Width | 800mm |
Voltage | 380V-440V 3 phase |
Motor HP | 15KW/20HP |
Motor driver | WEG motor + Delta inverter |
Rotating Speed | 450-1950rpm |
Grinding disc | 256mm*4 |
Weight | 555kg |
Features and Advantages
◆Total aluminum alloy gear box for a longer life.
◆Height-adjustable grinding heads make tool replacement easy
◆Easy Operation,which enables the staff to easily complete the whole construction process by strictly followig the manual.
◆Large grinding equipment has a large grinding pressure, which reduces the deflection force of the machine and makes the grinding more fine
◆Remote control grinding machine can be controlled remotely, saving manpower and realizing easy grinding
Product display
| Remote control transmitter with integrated button, effective transmission distance is greater than 100 meters, precise control and strong signal |

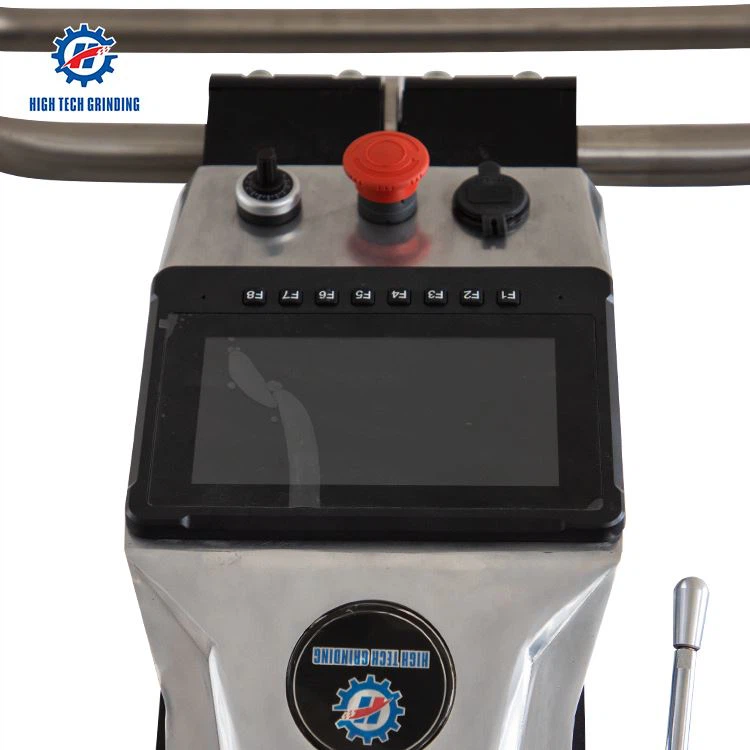

The integrated control panel has a 7-inch display, which can display all the operating information of the machine, and the display of fault information is conducive to timely troubleshooting |
|
| Three-stage weighted iron design, high degree of fit, the grinding pressure can be adjusted by itself, making the grinding more fine and uniform, and improving the efficiency of the machine |
Aluminum alloy wheels, superior quality, the appearance of screws are 304 stainless steel, will not rust, long service life |
|
Company Profile
Fujian Xingyi Machinery Co., Ltd. was established in 1999. It is a project company known as one of the largest system integration systems in the industry. It provides services worldwide and manufactures high-quality floor grinding and polishing machines, industrial vacuum cleaners, etc., as well as high-tech Grind products under the brand. Relying on the commitment to produce high-quality standard equipment, Xingyi entered the market and has sold its products and services to more than 124 countries around the world. It is open to OEM and ODM production from customers, and has obtained CE and SGS certification.
Since 2011, Xingyi has held its annual flooring technology seminar in March. It attracted more and more participants from all over the world, resulting in the number of participants attending the 2019 seminar increasing to a staggering 200 people. This culture is shared and recognized by our 39 distribution partners worldwide.
FAQ
Q1:Are you the manufacturer?
A1:Xingyi Polishing Machine has more than 10 years experience in manufacturing high quality floor grinding and polishing machine,industrial vacuum cleaner and floor polishing machines worldwide.
Q2:How to install and use the machine?
