700-4I Walk-behind Floor Grinder

700-4I Walk-behind Floor Grinder

700-4i is a walk-behind floor grinder. It is a classic square floor polisher produced by Xingyi Company. Designed for large and medium-sized industrial, commercial and residential workplaces. The 700-4i grinder combines the high-efficiency grinding efficiency of a large grinder with the user-friendly features of a small grinder, which is very suitable for various ground conditions, such as concrete, epoxy, terrazzo, cement and natural stone. The concrete grinding machine is equipped with 15HP WEG motor and 15HP Veichi frequency converter. It has large torque and stable performance. It has a four-head planetary counter-rotating grinding disc, and the grinding diamonds can be replaced. According to different grinding requirements, different grinding discs can be replaced to polish different ground. To ensure that the grinding quality meets the standard. The 700-4i floor polishing machine is equipped with a 32-liter durable PE water tank, which can be easily switched from dry to water mill as needed. It is a popular grinder.

Product advantages

1. The electric drive motor has a high speed and can rotate quickly to ensure that the floor can be polished within a period of time.

2. With the function of speed regulation, the speed of the grinder can be adjusted freely, so that the grinder can adjust different grinding speeds according to different ground conditions, with high flexibility.

3. With large grinding width and heavy weight, it can be polished smoothly on the ground, and the uneven ground is very powerful. It can be used on all kinds of floors and can be polished on different floors.

4. There is a load overload protector, which can ensure that when the load is too high, the ground grinder will directly stop grinding and turn off the motor to ensure that the motor will not be damaged.

Product parameter

✔700mm working width, large grinding pressure

✔ Durable PE water tank for wet grinding

✔ Aluminum alloy gearbox has good heat dissipation

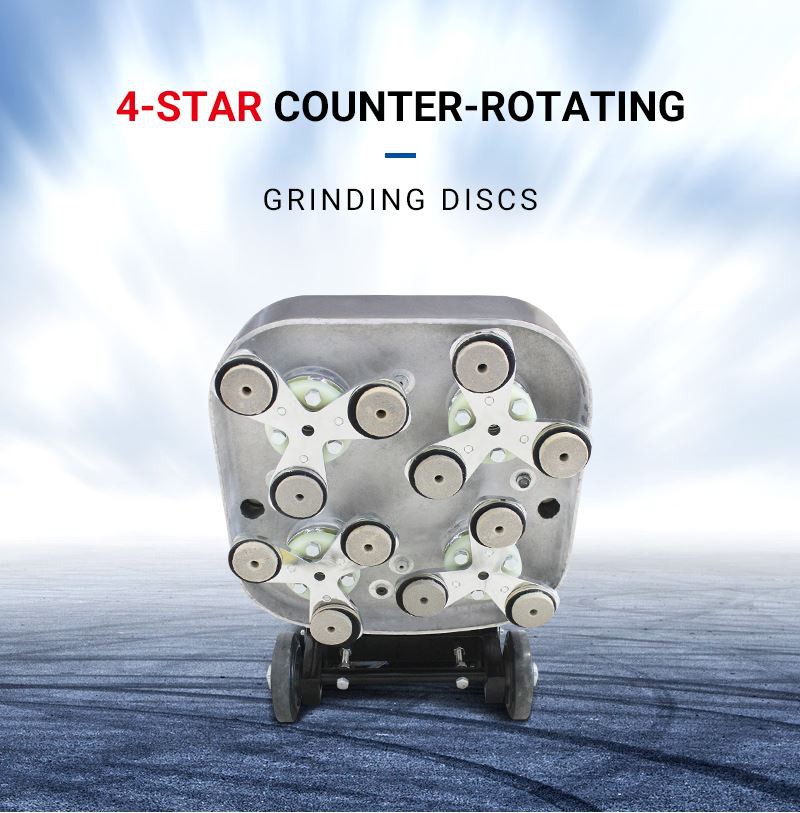

✔Four-head reverse grinding wheel

✔The metal control panel adopts electroplating process

✔The design of the whole machine paint is exquisite

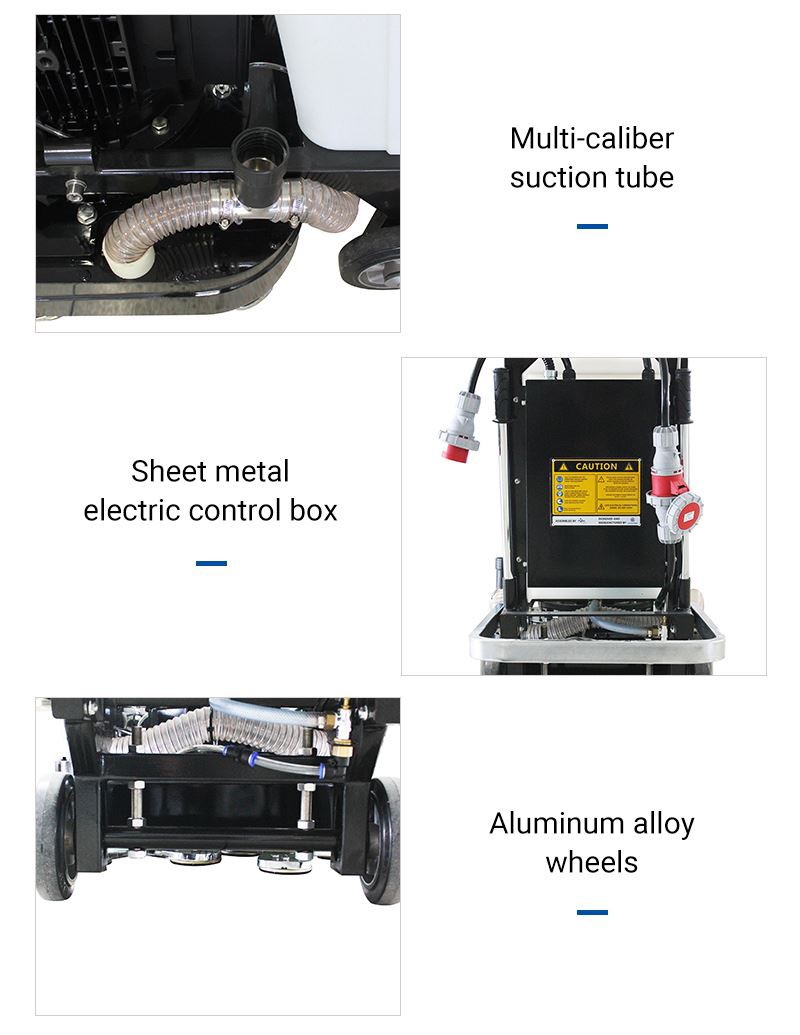

✔Dust suction port for dust-free grinding

✔High-quality polyurethane cushion, excellent shock absorption

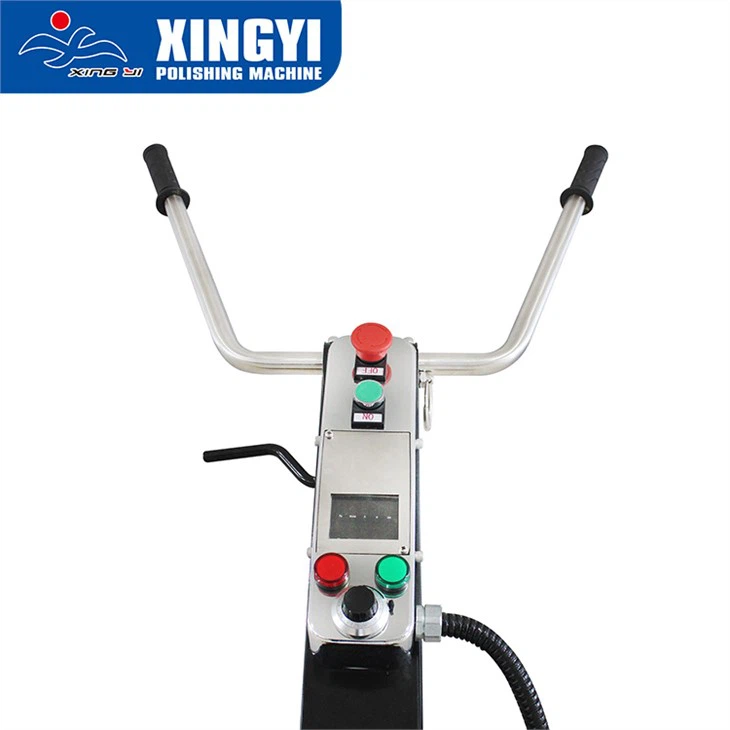

✔ Convenient switch position, simple operation

FAQ

Q1:What are the advantages of an integrated gearbox?

A1:

1. The increase in weight of the gear box of the floor grinder is beneficial to improve the efficiency of cutting.

2. The gear box body is made of aluminum alloy castings, which has good heat dissipation and is not easy to be deformed. One-time forming reduces machining errors and prolongs the service life.

3. The motor and gear box are directly connected to reduce the vibration of the machine, which reduces the noise of the machine and increases the flatness of the machine after polishing.

Q2:What should I pay attention to when using a floor grinder?

A2:

Pay attention to the following points during homework:

1. Polish in order, without leaving any exposure, it is best to polish once in both horizontal and vertical directions;

2. When polishing the concrete surface, confirm the strength of the work surface. Some work surfaces are sandy or loose. Don't over-polish. It is best to treat it with a concrete curing agent, and then polish after the strength is increased;

3. When working, pay attention to some workshop floors with complex working conditions, there will be protruding steel head bolt heads, etc.;

4. When polishing the mortar layer, pay attention to confirm whether the working surface is dry, otherwise it may affect the polishing effect;

5. When polishing the mortar layer, you can replace the diamond plate with a special polishing plate to prevent excessive polishing and damage the mortar layer;

6. Take care to put away the wires at any time and don't be disturbed by the grinder on the grinding disc;
