Concrete Floor Grinding Polishing Machinery HTG-700-4A
Model:HTG-700-4A
HP:20HP
Voltage:220-240V/380V-440V
Advantages:Gear-Driven,imported motor which afford strong power,collapsible control panel，making it easy &convenient for our projects.
Manufacturing Center
Xingyi factory had developed for 19 years,Awarded 123 patents for inventions.Helping our clients finished many kinds of floor grinding polishing and maintance projects.
Product Description
Features and Advantages
1.The HTG-700-4A concrete floor grinder is the perfect machine,with remote control ability,variable speed adjust providing you with more versatility and more flatly contrast with others.
2.Make you work more 30%-50% efficient ,The labor cost be saved completely.
3.Planetary heads made with all steel gears,
4.Instant Change System magnetic metal plates with removable Velcro attachments
5.Motor and inverter are approved CE,qualtiy assured!
Technical Specidfication
| Model | HTG-700-4A |
| Voltage | 220-240V/380V-440V, 3Phase |
| Input Power | 15KW(13HP) |
| Inverter | 11KW(20HP) |
| Current | 29.3/50.5AMP |
| HZ | 50/60HZ |
| Work Area | 700mm |
| Disc Speed | 450-1680RPM |
| Disc Diameter | 340mm*4 |
| Water Tank | 23L |
| Extra Weight | 2*20KG |
| Weight | 480KG |
| L*W*H | 124*77*132cm |
Machine Shows

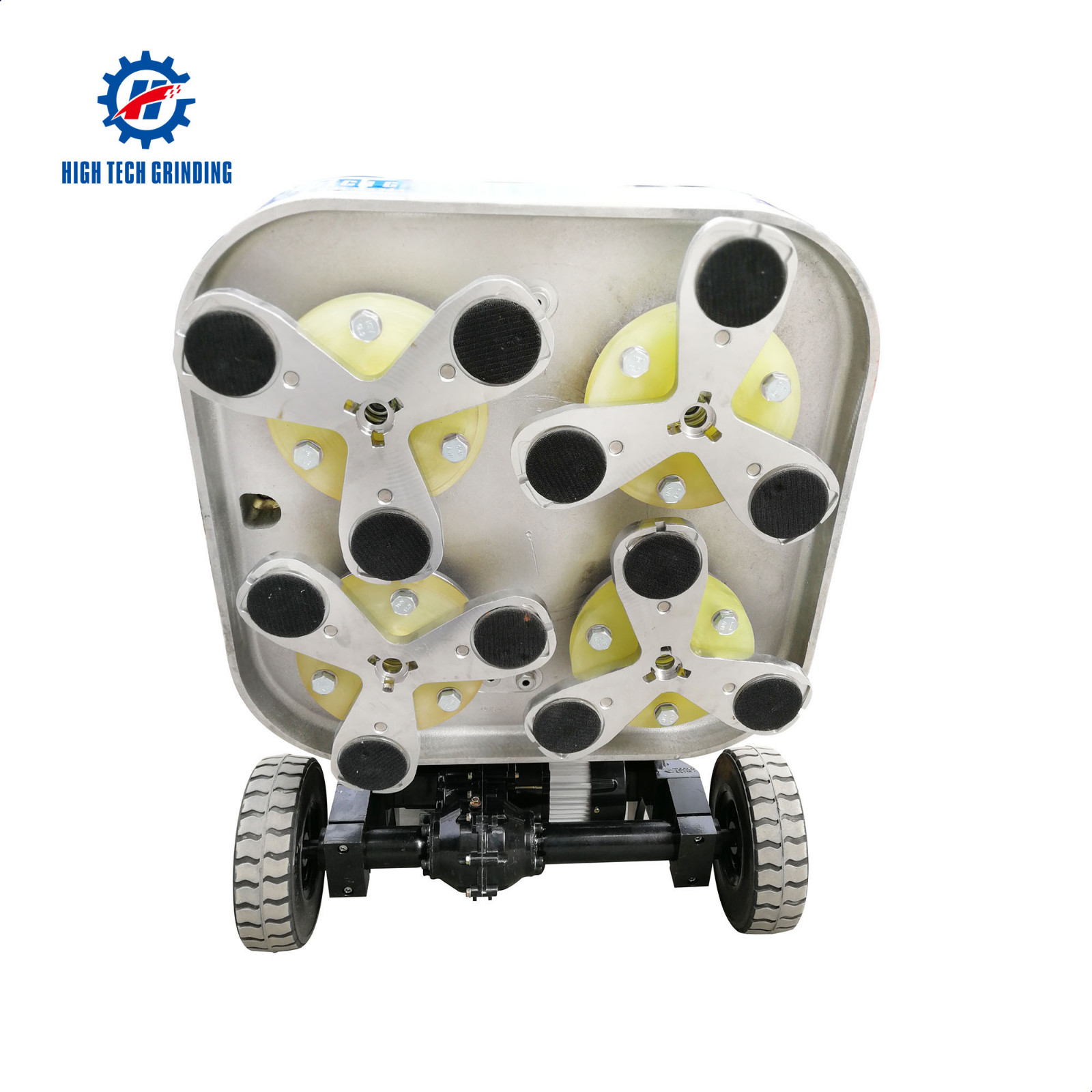

Grinding plate |

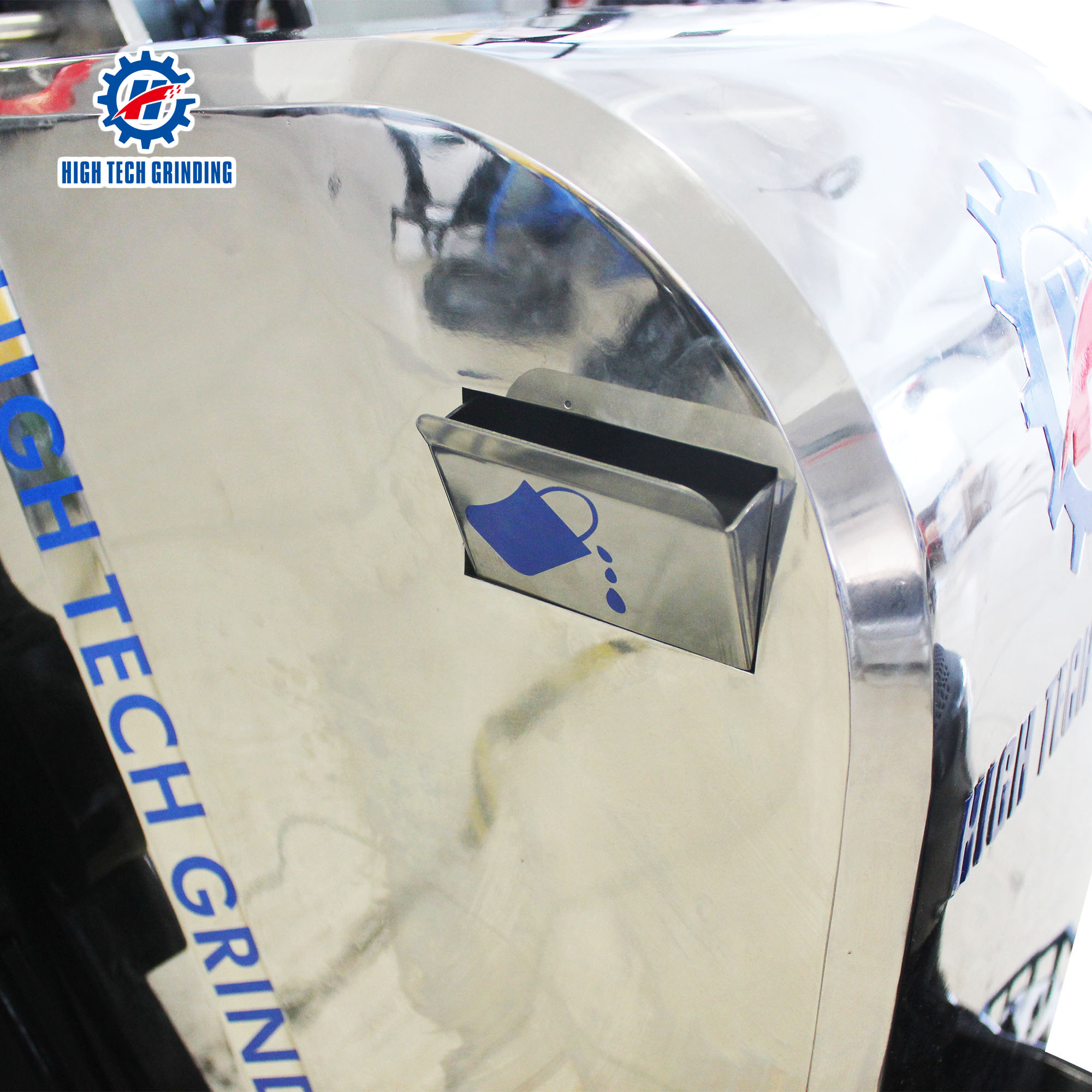

Water Tank |

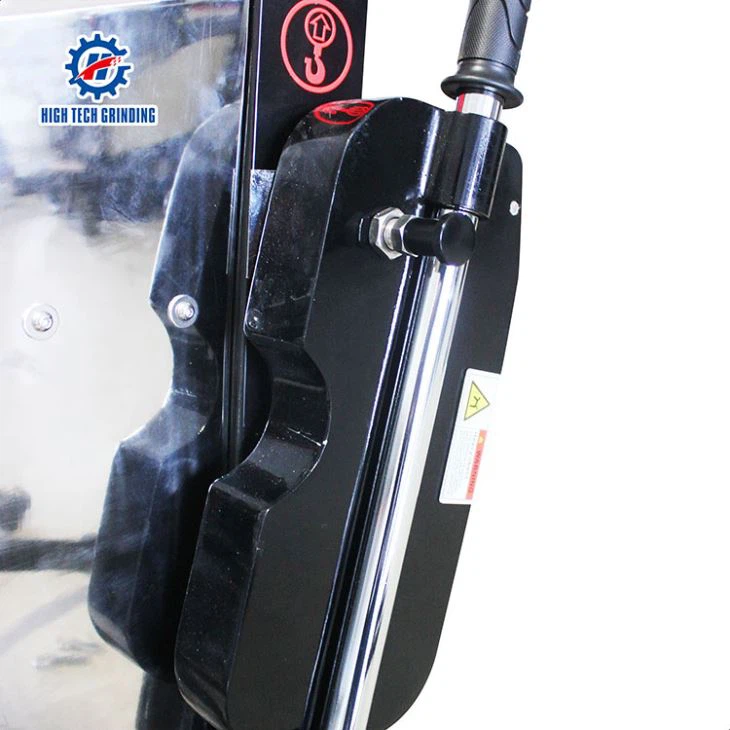

Addition weight |
Control Panel |
Features & Adavantages
1.The HTG-700-4A concrete floor grinder is the perfect machine,with remote control ability,variable speed adjust providing you with more versatility and more flatly contrast with others.
2.Make you work more 30%-50% efficient ,The labor cost be saved completely.
3.Planetary heads made with all steel gears,
4.Instant Change System magnetic metal plates with removable Velcro attachments
5.Motor and inverter are approved CE,qualtiy assured!
Customer Demo
Company Information
1.We are the one of the biggest system integrates which providing Full-floor polishing products and service in China.
2.Not only we are a factory,but also have our own engineering company.
Any questions about the machines or projects,we can give you a free technical guidence.
3.We have a 34 foreign offices across the global so that we can provide an extremely details and customer support.
4.Our annual international floor treatment seminar is more and more popular among famous connoisseurs.
