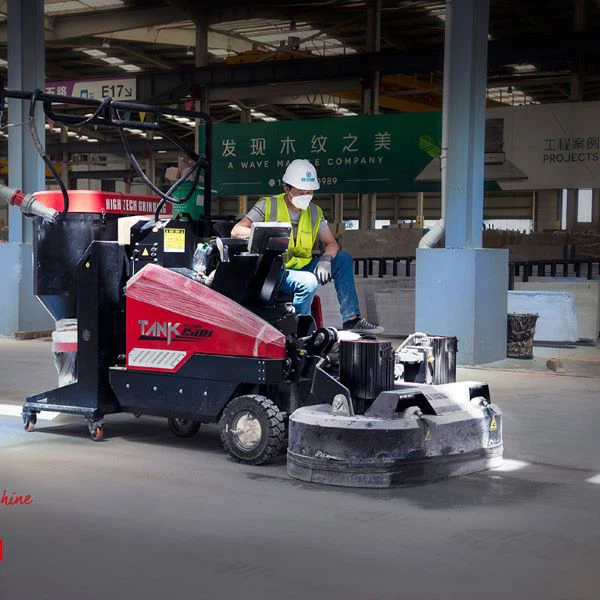

Big Surface Concrete Floor Grinder Machine
Model：Tank1500
Motor Power：18.5kw*2
Advantage：1. Extremely flexible turning operation.
2.Auto-cleaning detachable cyclone dust collection with Pre-separator and longopac bagging system.
3. No middle gap during grinding thanks to special planetary heads arrangement.
4. 3D hydraulic pressure sensor and the auto-adjustment system keep the grinding pressures consistent.
5. Update HMI system with the voice broadcast function more friendly operation in detail.
Big surface concrete floor grinder machine
Tank1500 floor grinding and refurbishing polishing machine adopts all-aluminum alloy box and all-geared grinding machine, equipped with high-power motor and frequency conversion device, humanized appearance design, novel and generous, convenient operation, safe and reliable, and meets the construction of different processes On request, it can be equipped with a dust suction device, a large-capacity water tank, which can achieve both dry and wet operation methods, and a multi-functional grinding plate can install different specifications of abrasives to reduce construction costs as much as possible. Large-area construction can effectively improve the working efficiency of the machine and effectively save labor.
In order to provide you with faster and better service, please use WhatsApp or WeChat to contact us as a priority.Whatsapp: +86 18606983077
Technical Parameters
| Model | tank1500 |
| Length | 2920mm |
| Width | 1600mm |
| Height | 1580mm |
| Weight | 2100kg |
| Motor Power | 18.5kw*2 |
| Voltage | 380V |
| Frequency | 50-60HZ |
| Grinding pressure | 980kg |
| Rotating speed | 450-1500rpm |
| Grinding discs | 278*8mm |
| Grinding width | 1550mm |
| Water tank | 25L |
| Water spray system | Yes |
| Vacuum cleaner power | 7.5kw |
| Max theoretical airflow | 1000 m³/hour |
| Walking motor | 2kw*2个 |
Product Details
Features and Advantages
-
Extremely flexible turning operation.
-
Auto-cleaning detachable cyclone dust collection with Pre-separator and longopac bagging system.
-
No middle gap during grinding thanks to special planetary heads arrangement.
-
3D hydraulic pressure sensor and the auto-adjustment system keep the grinding pressures consistent.
-
Update HMI system with the voice broadcast function more friendly operation in detail.
Product Operation Display
Company Profile
Company Certificate
Packaging & Delivery
FAQ
How to solve the equipment trouble during use?
A: Please email us about the problem with pictures or a small video will be better, we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.
Visting factory is allowed or not?
A: Yes, we welcome customers visiting our factory.
Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and technical data.
