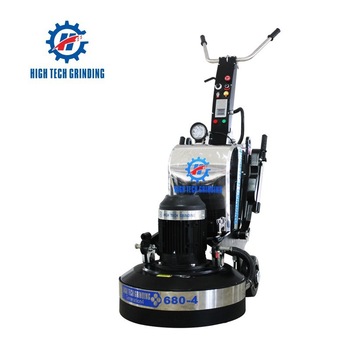

Concrete Floor Grinding Polishing Machine HTG-680-4
Model:HTG-680-4
HP:13HP
Voltage:220-240V/380V-440V
Advantages:Gear-Driven,imported motor which afford strong power,collapsible control panel，making it easy &convenient for our projects.
Manufacturing Center
Xingyi Factory had developed for 19 years,Awarded 123 patents for inventions.Helping our clients finished many kinds of floor maintance grinding polishing projects.
Production Description
High Tech Grinding HTG-680-4surface grinding polishing machine have achieved unique balance between devices power, design and tooling speed,efficiency.

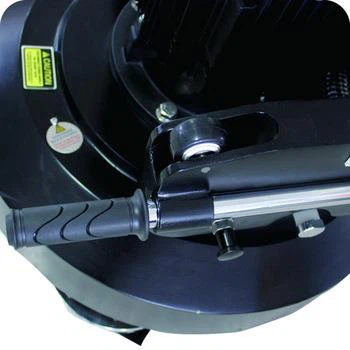

Machine Shows
Carrying Pole |
Water Tank |
Addition weight |
Technical Specifications
| Motor: | 7.5KW(10HP) motor |
| Inverter: | Veichi7.5KW/Delta11KW |
| Working width: | 680mm |
| Grinding disc: | 230mm*4 |
| Motor rotating speed： | 350rpm-1950rpm |
| Machine net weight： | 380kg(Including additional weight 20kg*2) |
| Voltage: | 220v/380v Three phase |
| Grinding pressure: | 173kg-190kg-236kg |
| Water tank: | 23L |
Features & Advantages
1.Planetary counter rotation reduces High Tech GrindingHTG-680-4machine's deviating force then it helps to lower grinding strength and easy to grip machine.
2.High Tech GrindingHTG-680-4with special and patented floating dust cover is a breakthrough of traditional abrasive dust cover.
3.Three grades disc pressure adjustment achieved to provide users with unprecedented control performance from the pre-treatment,grinding and polishing of concrete flooring to stone repairing and polishing.
Customer Demo
Our Certificates
Xingyi enterprise had awarded 123 patents,like passed CE,ISO9001,TUV,SGS....., Being 5 years of outstanding consecutive equipment manufacturers, Fujian Floor Association.
Our Service
Customer first, Xingyi have hold the seminar of floor maintances for 6 years from 2011 in every March .Besides,we offer our clients technical service across the world.
Packing & Delivery
Packing Dteails:Each floor grinding machine packed in strandard wooden case.
Delivery Time:Shipped in 7 days after payment.
Company Information
1.We are the one of the biggest system integrates which providing Full-floor polishing products and service in China.
2.Not only we are a factory,but also have our own engineering company.
Any questions about the machines or projects,we can give you a free technical guidence.
3.We have a 34 foreign offices across the global so that we can provide an extremely details and customer support.
4.Our annual international floor treatment seminar is more and more popular among famous connoisseurs.
